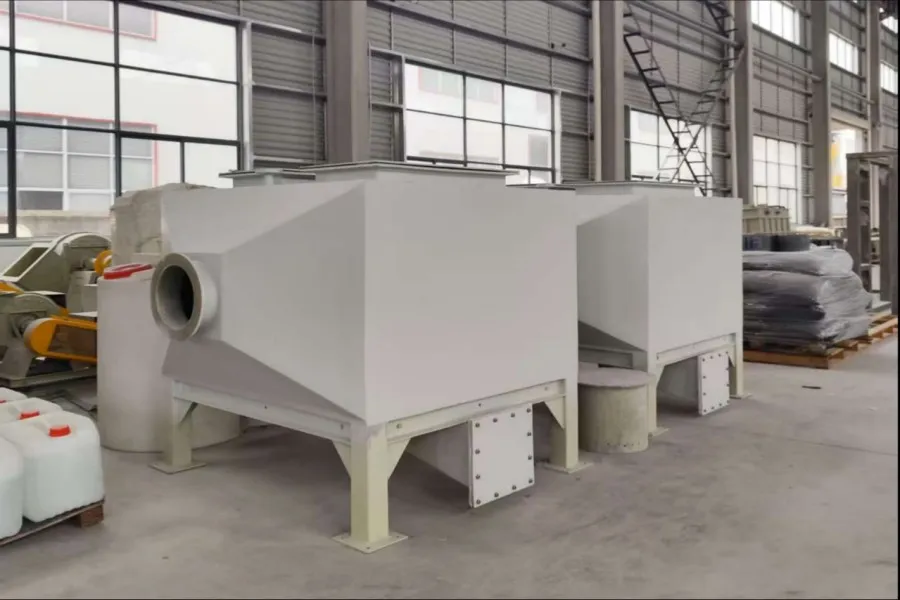

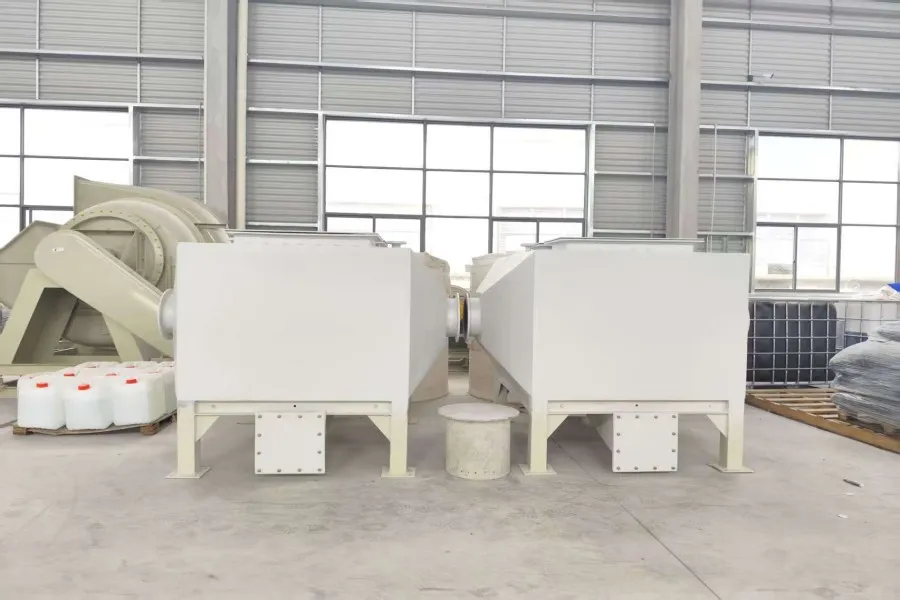

Activated Carbon Adsorption Box
Activated carbon adsorption box for VOC polishing, odor control and combined exhaust treatment systems.
Product Details
Industrial Organic Solvent & VOC Vapor Removal Systems
Our Activated Carbon Adsorption Boxes are highly efficient, economical air purification units engineered to remove Volatile Organic Compounds (VOCs), hazardous air pollutants (HAPs), and persistent foul odors from industrial exhaust streams. Utilizing high-surface-area activated carbon media in modular, low-pressure-drop containment housings, these systems provide reliable emission compliance for manufacturing and process industries.
Key Features & Advantages
- Superior Adsorption Efficiency: High-grade honeycomb or granular activated carbon provides an immense microporous surface area (up to 1,000+ m²/g) for rapid adsorption of organic molecules.
- Versatile Pollutant Capture: Effectively captures a wide range of solvents including benzene, toluene, xylene, alcohols, ketones, esters, and chlorinated hydrocarbons.
- Low System Resistance: Optimized internal fluid mechanics ensure uniform air distribution across carbon beds, significantly reducing static pressure drop and fan energy costs.
- Modular Drawer-Type Design: Features accessible slide-out tray/bed designs for quick, safe, and tool-free carbon media inspection and replacement.
- Durable & Custom Housings: Available in heavy-duty carbon steel (powder-coated), PP, FRP, or Stainless Steel to withstand harsh outdoor and chemical environments.
Technical Specifications
| Parameter | Standard Range / Option |
| Housing Material Options | Carbon Steel (Epoxy/Powder Coated), Stainless Steel 304/316, PP, FRP |
| Carbon Media Types | Honeycomb Activated Carbon, Granular Carbon (4mm Pellet), Impregnated Carbon |
| Airflow Volume Capacity | 1,000 to 80,000+ m³/h (Customizable) |
| VOC Removal Efficiency | 80% to 95%+ (Depending on gas velocity & carbon bed depth) |
| Filtration Velocity | 0.8 to 1.2 m/s (Honeycomb) / 0.3 to 0.6 m/s (Pellet) |
| Optional Features | Differential pressure gauge, Flame arrester, Auto-temperature alarm |
Typical Applications
- Commercial Printing & Packaging Lines
- Automotive & Industrial Spray Painting Booths
- Electronics & Circuit Board Manufacturing
- Chemical Synthesis & Pharmaceutical Plants
- Rubber, Plastics & Resin Processing
- Wastewater Treatment Odor Abatement
Request a Custom Quote
Contact our engineering team with your process airflow rate, solvent composition, and operating hours for a optimized activated carbon adsorption solution.
Need a waste gas treatment plan?
Send airflow, gas composition and site photos. RST will match equipment, materials and layout for your project.
